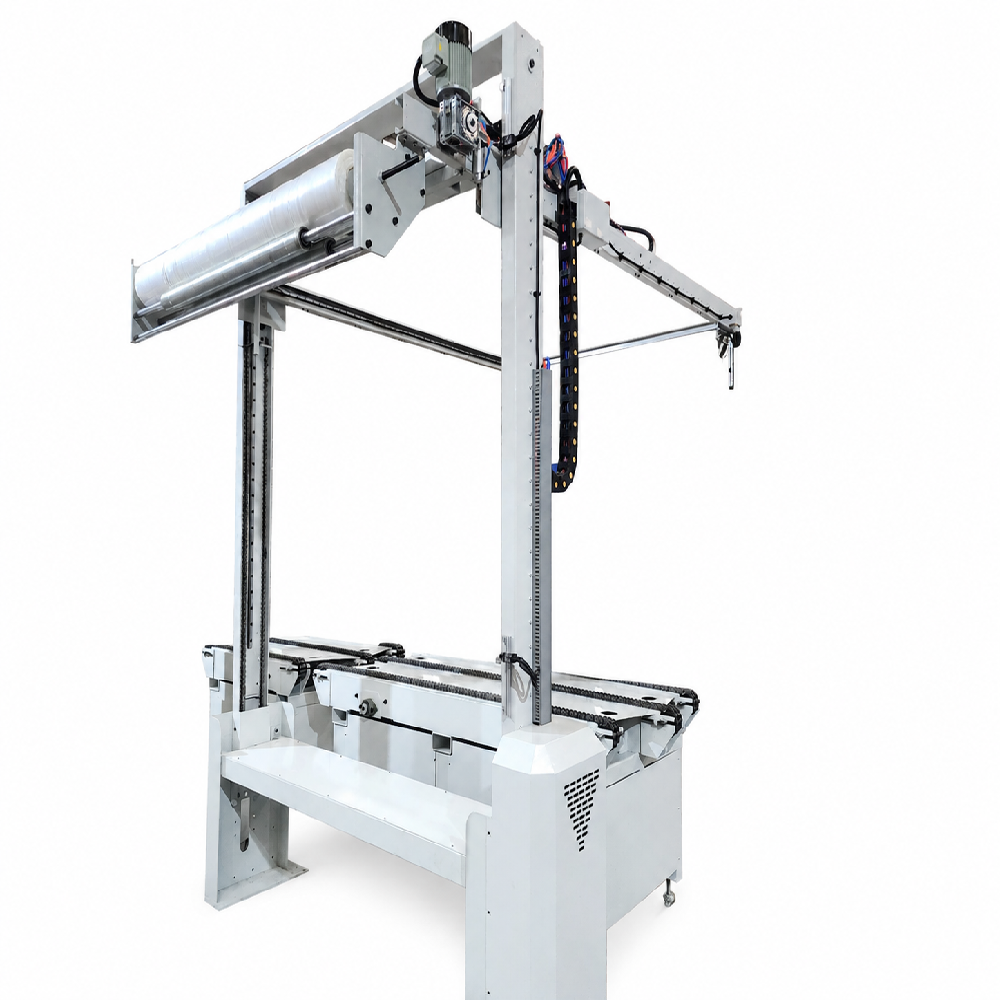

TOP SHEET DISPENSOR

1. Product Overview

Automatic Pallet Top Sheet Applicator

The HD SYSTEM Automatic Pallet Top Sheet Applicator is designed to automatically dispense and apply protective sheets onto the top surface of palletized products.

The system automatically feeds the top sheet from a roll or sheet magazine, cuts it to the required length, and places it onto the pallet load. It can be installed as a standalone machine or integrated into an automated pallet packaging line.

The Top Sheet Applicator is suitable for applications requiring protection against dust, moisture, contamination, and external environmental conditions during storage and transportation.

2. Key Features

• Fully automatic top sheet dispensing

• Automatic sheet feeding

• Automatic sheet cutting

• Automatic sheet application

• Adjustable sheet length

• Automatic product/load detection

• Suitable for various pallet sizes

• PLC-based automatic control

• HMI touch screen operation

• Recipe management for different pallet sizes

• Compact and robust industrial structure

• Easy integration with pallet conveyors

• Suitable for integration with stretch wrapping systems

• Customized design available

3. Machine Specifications

* Actual specifications depend on sheet material, pallet size, product dimensions, and machine configuration.

4. Automatic Operation Sequence

Step 1. Pallet Infeed

The palletized product enters the top sheet application station through the conveyor.

Step 2. Pallet Detection

Sensors detect the pallet and confirm its position.

Step 3. Product Size Detection

The system identifies the required sheet size according to the product or preset recipe.

Step 4. Sheet Feeding

The top sheet is automatically supplied from the sheet roll or magazine.

Step 5. Sheet Cutting

The sheet is automatically cut to the programmed length.

Step 6. Top Sheet Application

The cut sheet is transferred and positioned on the top surface of the palletized product.

Step 7. Position Confirmation

Sensors confirm the application process before the pallet moves to the next process.

Step 8. Automatic Outfeed

The completed pallet is transferred to the next process, such as a stretch wrapping machine.

5. Top Sheet Control

The HMI can be configured to control and monitor various parameters.

Typical parameters include:

• Top sheet length

• Top sheet width

• Sheet feeding speed

• Sheet cutting position

• Sheet application timing

• Product height

• Pallet size

• Sheet quantity

• Production counter

• Alarm status

• Manual / Automatic mode

When multiple pallet sizes are used, different top sheet parameters can be stored as individual recipes.

6. Integration with Automatic Packaging Lines

The Top Sheet Applicator can be integrated with HD SYSTEM's automated pallet packaging equipment.

Typical Line Configuration

Pallet Infeed Conveyor → Top Sheet Applicator → Centering / Positioning → Stretch Wrapping Machine → Outfeed Conveyor

The system can also be integrated with:

• Automatic palletizer

• Pallet conveyor

• Pallet positioning system

• Centering device

• Ring wrapping machine

• Rotary arm wrapping machine

• Automatic stretch wrapper

• Pallet warehouse

• AGV / AMR system

The Top Sheet Applicator can exchange pallet detection, product size, sheet size, and process completion signals with the main PLC.

7. Applicable Products

The machine can be used for various palletized products, including:

• Paper products

• Tissue products

• Cartons and boxes

• Food and beverage products

• Pharmaceutical products

• Chemical products

• Plastic products

• Automotive parts

• Industrial materials

• General palletized products

8. Optional Features

• Servo-controlled Sheet Feeding

• Automatic Sheet Cutting

• Multiple Sheet Size Recipes

• Automatic Product Height Detection

• Laser Measurement Sensor

• Photoelectric Sensors

• HMI Touch Screen

• Recipe Management

• Automatic Sheet Roll Replacement

• Sheet Roll End Detection

• Low Sheet Material Alarm

• Safety Light Curtain

• Safety Fence

• Automatic Centering Device

• Conveyor Integration

• Barcode / Product Data Interface

• MES / ERP Interface

• Remote Monitoring System

9. Advantages

Automatic Top Protection

The machine automatically applies a protective sheet to the top of the palletized product before or during the packaging process.

Protection Against External Conditions

The top sheet helps protect products from dust, moisture, and contamination during storage and transportation, depending on the selected sheet material.

Consistent Application

Automatic sheet feeding, cutting, and positioning provide consistent top sheet application.

Flexible Size Management

Different sheet sizes can be managed through HMI recipe settings according to pallet and product dimensions.

Easy Line Integration

The machine can be directly integrated with conveyors and stretch wrapping machines to create a fully automated pallet packaging system.

Customized Design

Sheet dimensions, feeding method, cutting method, machine dimensions, conveyor configuration, and control system can be customized according to the customer's product and production requirements.

10. Manufacturer

HD SYSTEM

HD SYSTEM specializes in the design and manufacture of pallet wrapping machines, top sheet systems, conveyors, and automated pallet packaging lines.

The Automatic Pallet Top Sheet Applicator can be supplied as a standalone machine or integrated into a complete automated pallet packaging line according to customer requirements.
