PE NON WOVN BAG FILTERS

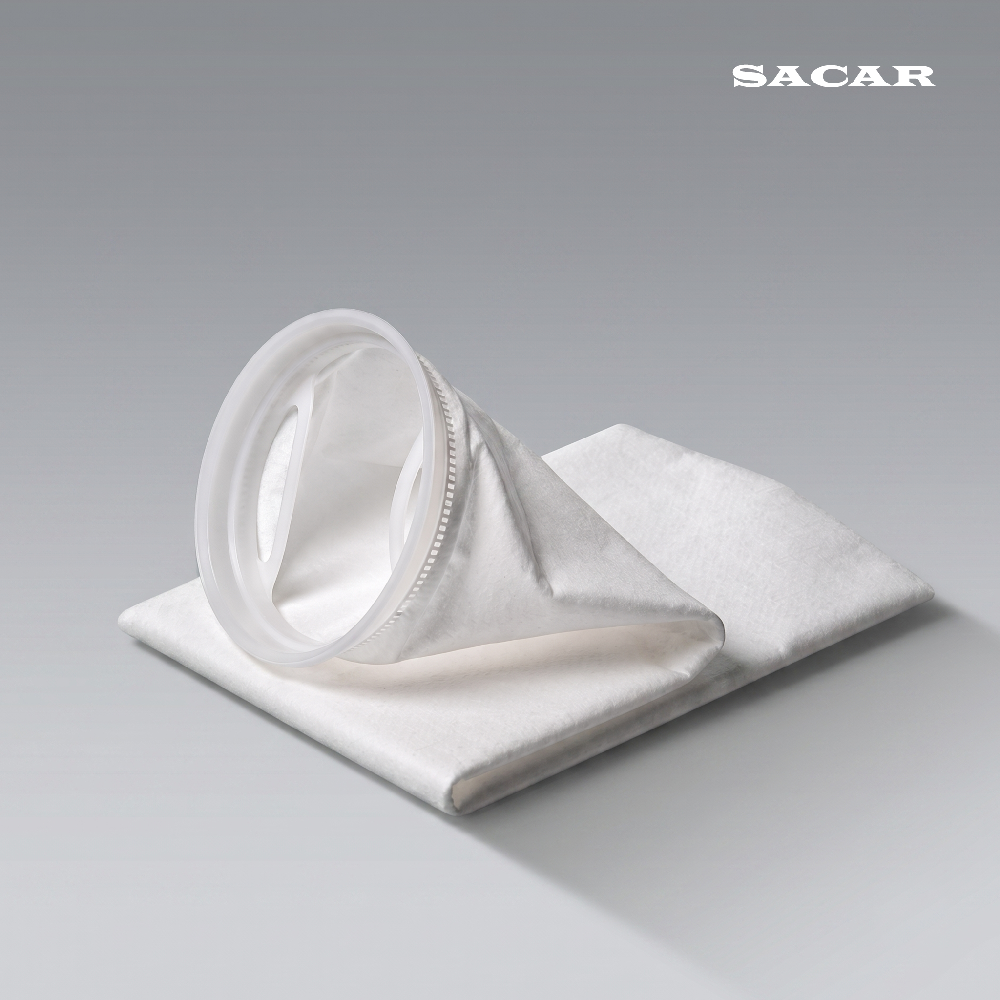

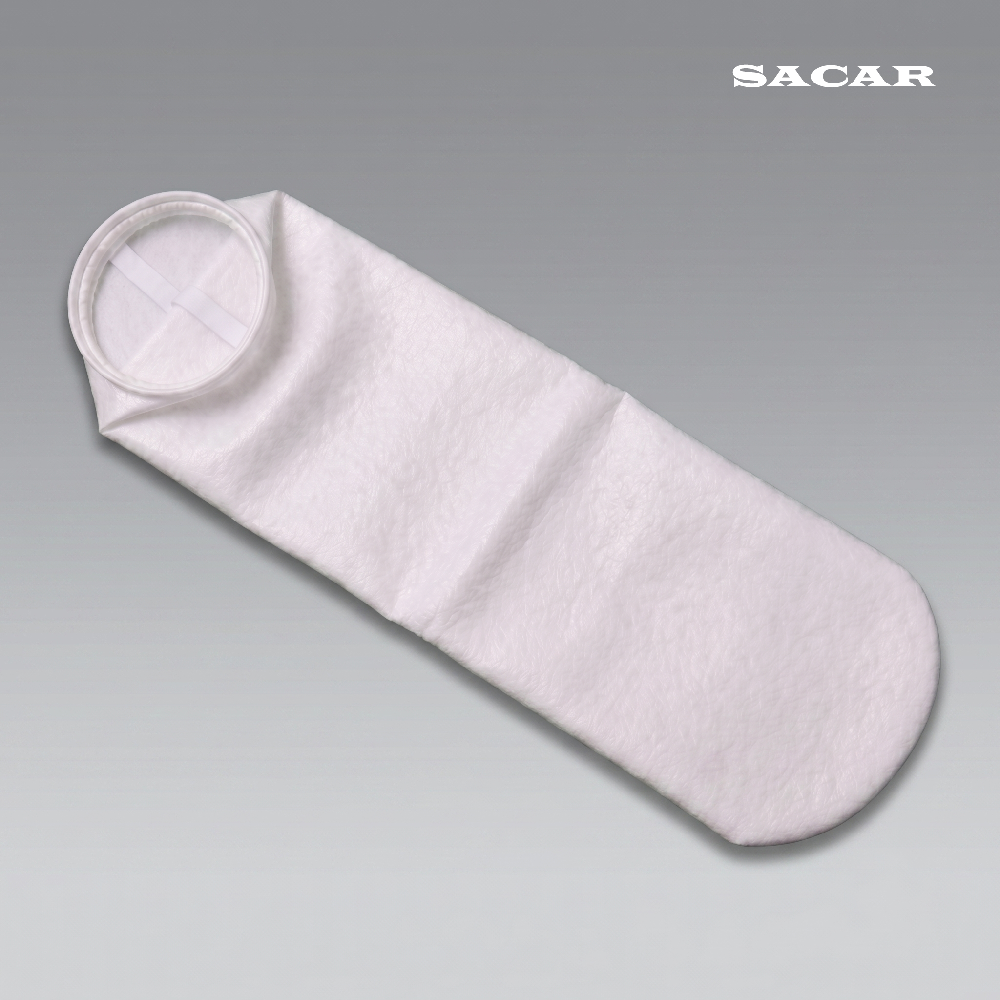

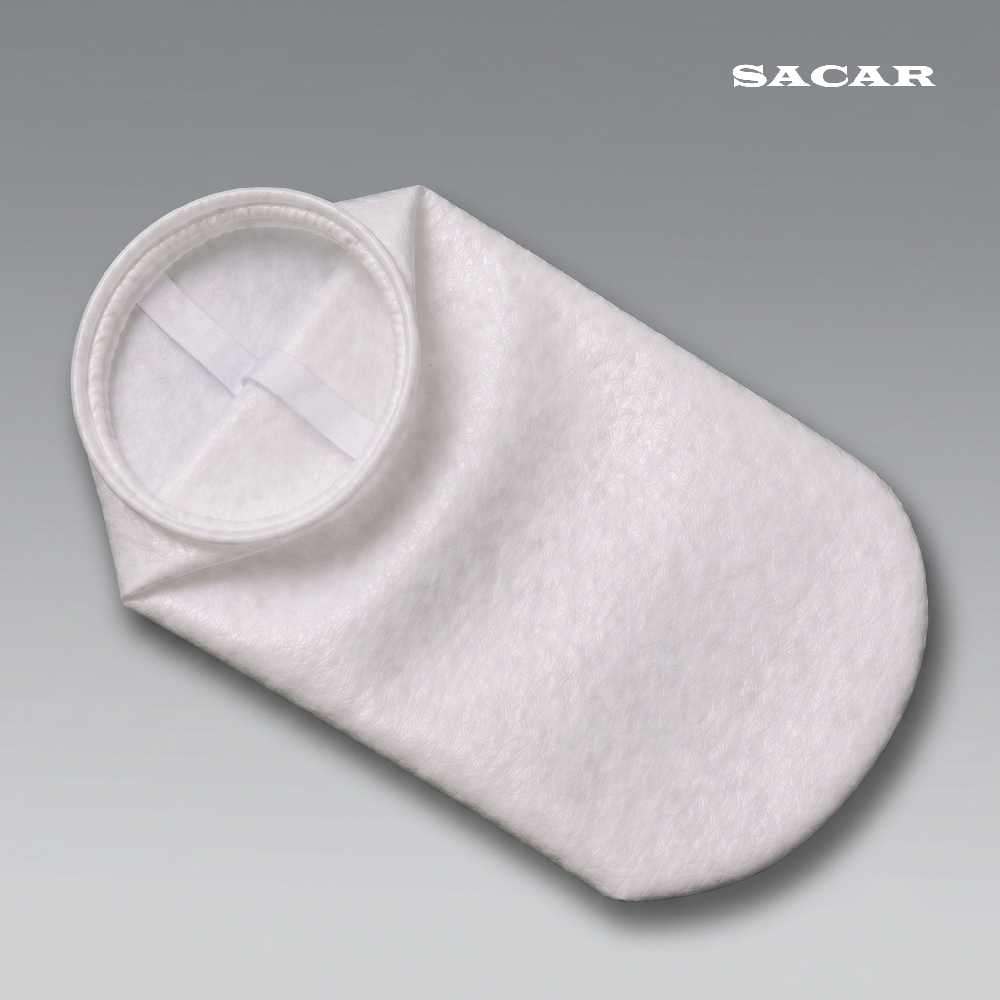

PE Non-woven Bag Filters, SBNP2 Series

[Description]

The Polyester (PE) Non-Woven Bag Filter is constructed from premium polyester needle-felt media, specifically engineered for applications requiring high operating temperatures and superior physical abrasion resistance. While standard PP bag filters are limited to lower thermal thresholds, PE bag filters maintain structural integrity and dimensional stability at continuous operating temperatures up to 135°C–150°C. They exhibit outstanding tensile strength, chemical compatibility with aromatic solvents, petrochemical fluids, and synthetic oils, providing a reliable filtration barrier in demanding industrial processes.

[Features]

•  Elevated Temperature Tolerance: Operates continuously at temperatures up to 135°C–150°C without thermal degradation.

•  Exceptional Tensile Strength: High physical strength resists abrasion, mechanical stress, and pressure surges.

•  Petrochemical & Solvent Resistance: Highly compatible with aromatic solvents, hydrocarbons, and synthetic oils.

•  Singed / Glazed Surface Treatment: Prevents loose polyester fibers from migrating into process fluids.

•  Overcomes Polypropylene Thermal Limits: Ideal high-temperature alternative where PP media softens or fails.

[Specifications]

•  Material: Polyester

•  OD: 180 mm (Customizable)

•  Length: 430, 810 mm (Customizable)

•  Ring: SUS304

•  Rating: 1 ~ 100 micron

•  Temperature: Max. 150 ℃

•  Differential Pressure: Max. 2.0 kgf/cm²
