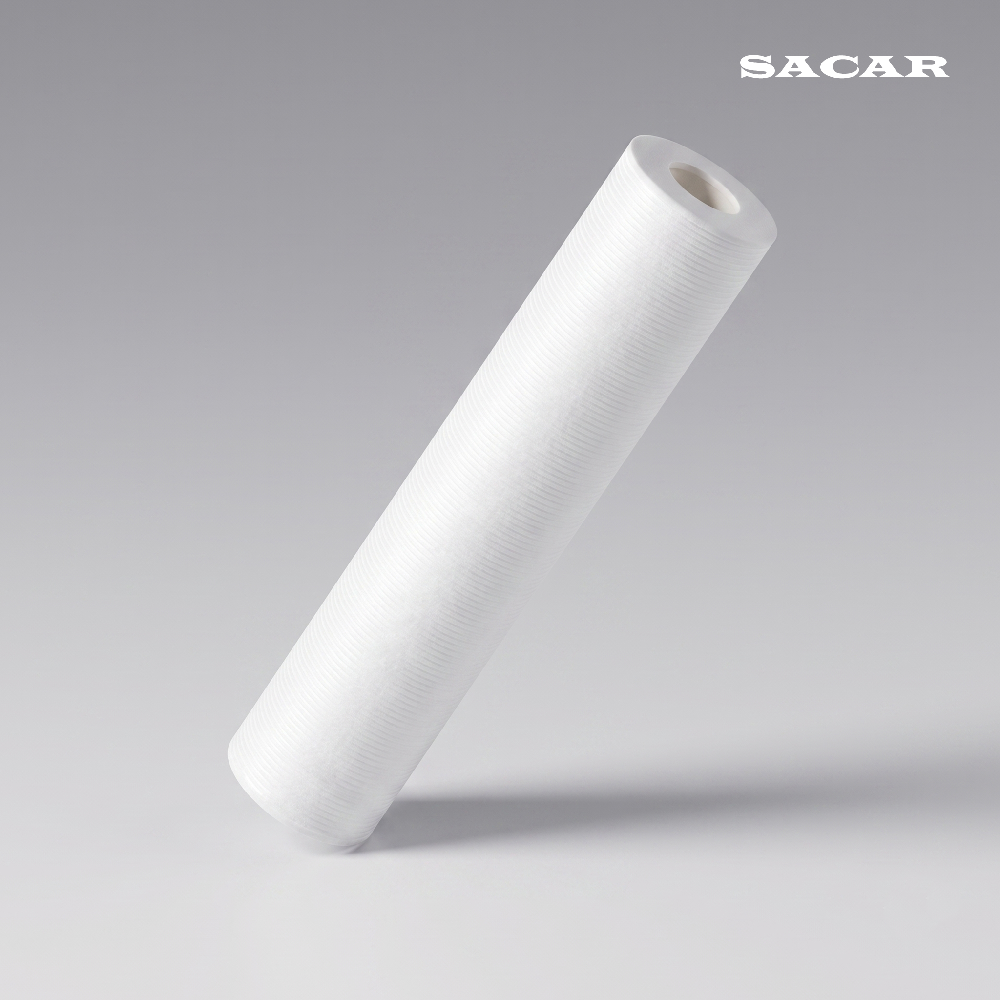

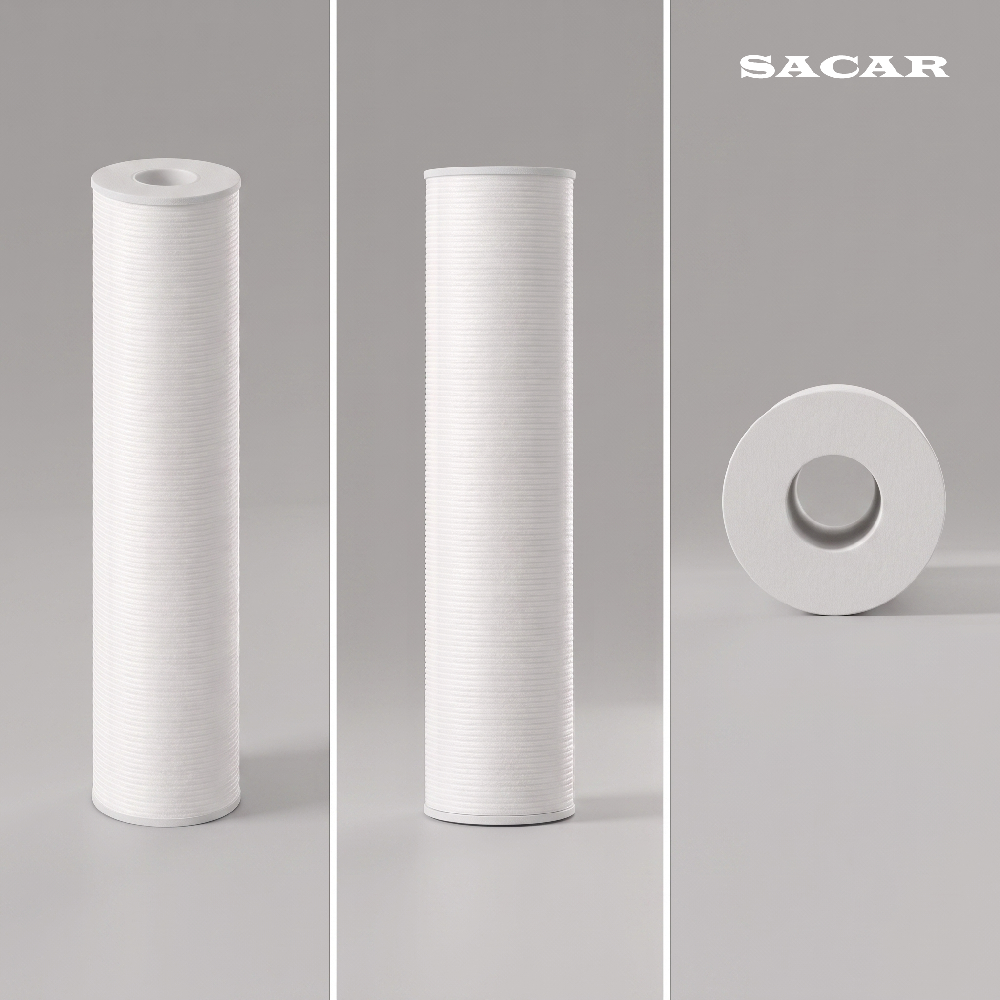

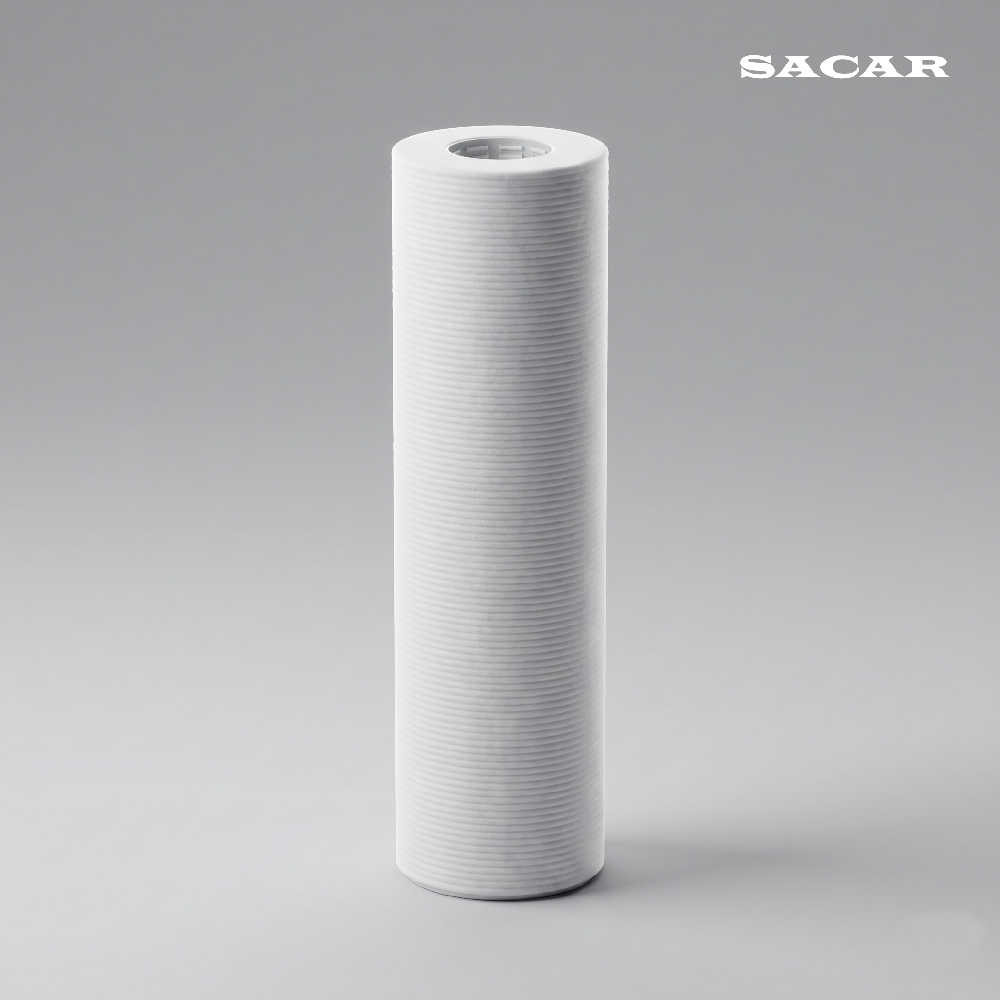

COMPOSITE PP NON WOVEN FILTER CARTRIDGES

Composite PP Non-woven Filter Cartirdges, CPSDN Series

[Description]

The Composite PP Non-Woven Filter Cartridge is engineered by x-layering multiple non-woven sheets with different micron ratings into a single filter matrix. By wrapping a coarse pre-filtration non-woven x-layer over a fine inner core, this multi-density structure achieves balanced contaminant distribution, high void volume, and extended service life in aggressive chemical environments.

[Features]

•  Graduated Multi-Micron Layers: Integrates distinct pore sizes from outer coarse to inner fine non-woven sheets.

•  Volumetric Depth Retention: Utilizes the full volumetric density of multi-x-layer sheets to store contaminants.

•  Prevents Surface Clogging: Outer coarse x-layer shields fine inner x-layer from immediate loading.

•  100% Polypropylene Purity: Free of adhesives, binders, or silicone, ensuring zero extractables.

•  Superior Flow Rates: High porosity combination delivers lower initial differential pressure.

[Specifications]

•  Material: Polypropylene

•  Length: 250, 500, 750, 1000 mm

•  Core: Polypropylene

•  Rating: 0.5 ~ 100 micron

•  ID/OD: Ø 30 / 62 mm

•  Temperature: Max. 80 ℃

•  Differential Pressure: Max. 4.0 kgf/cm²
