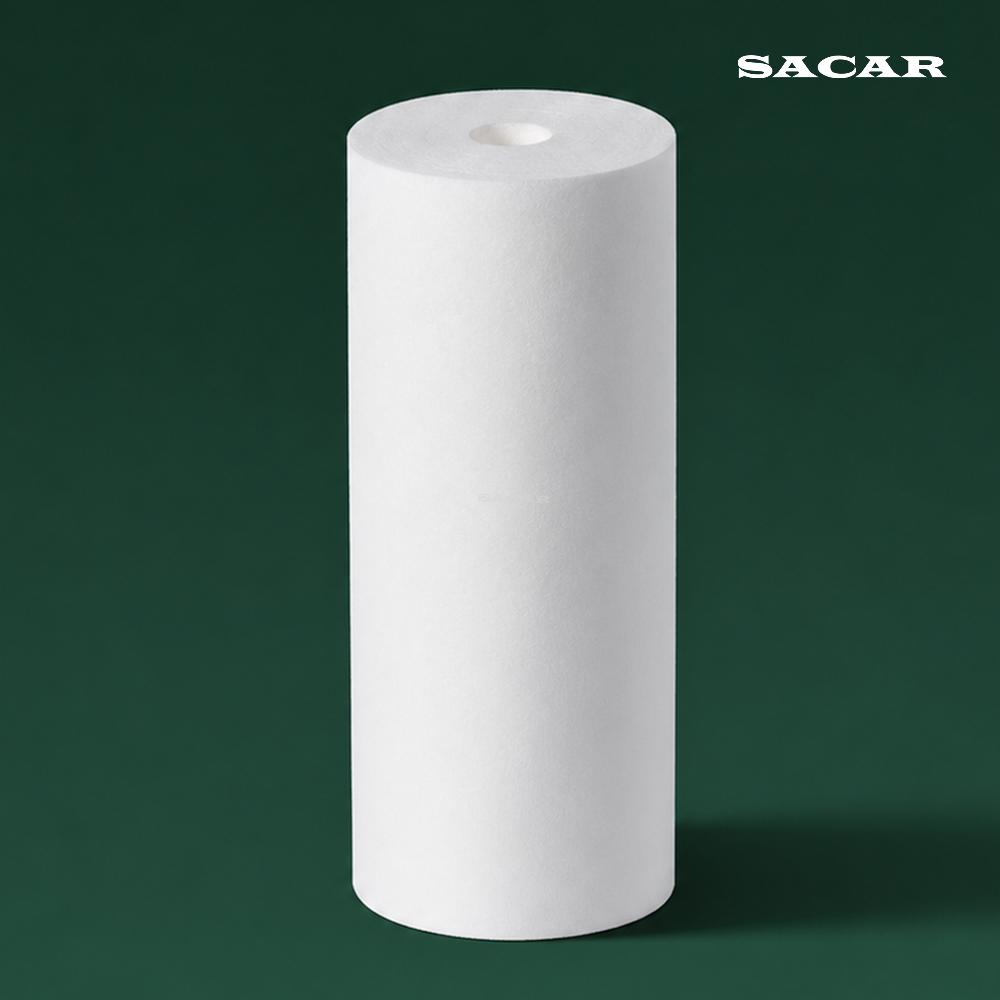

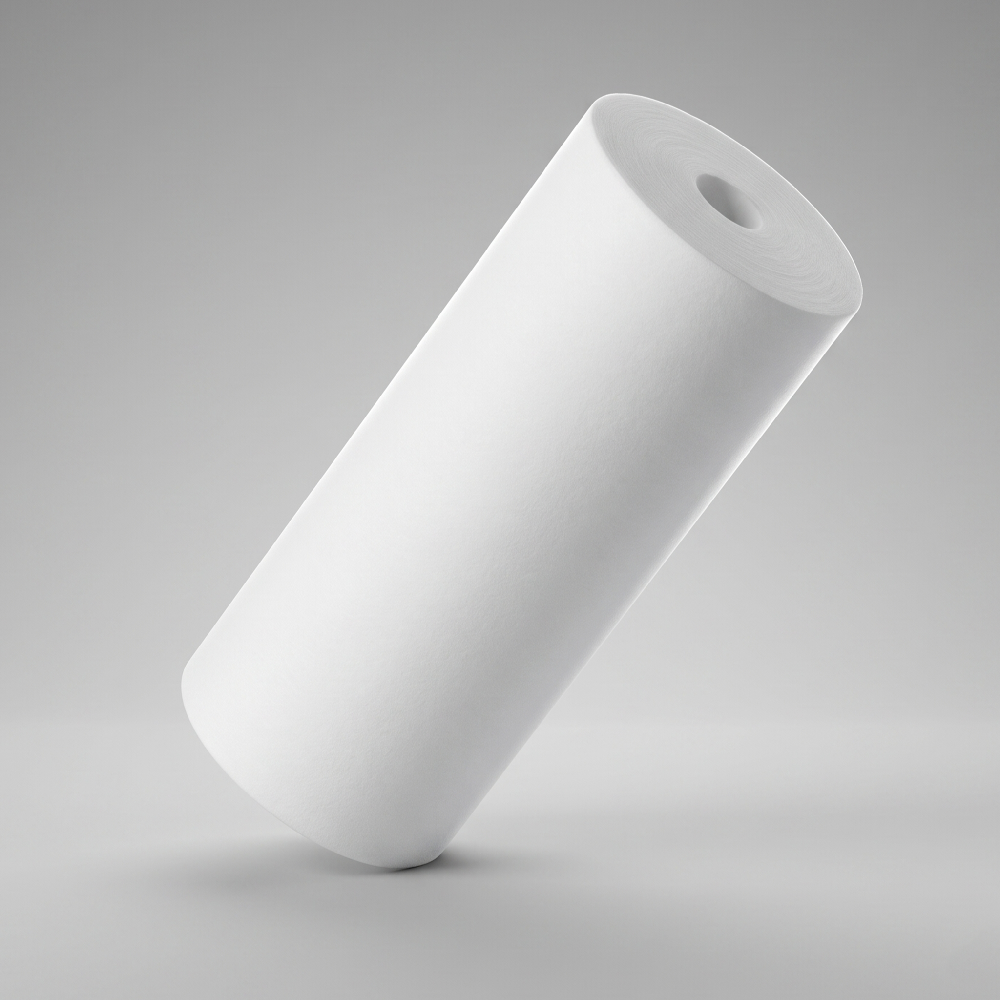

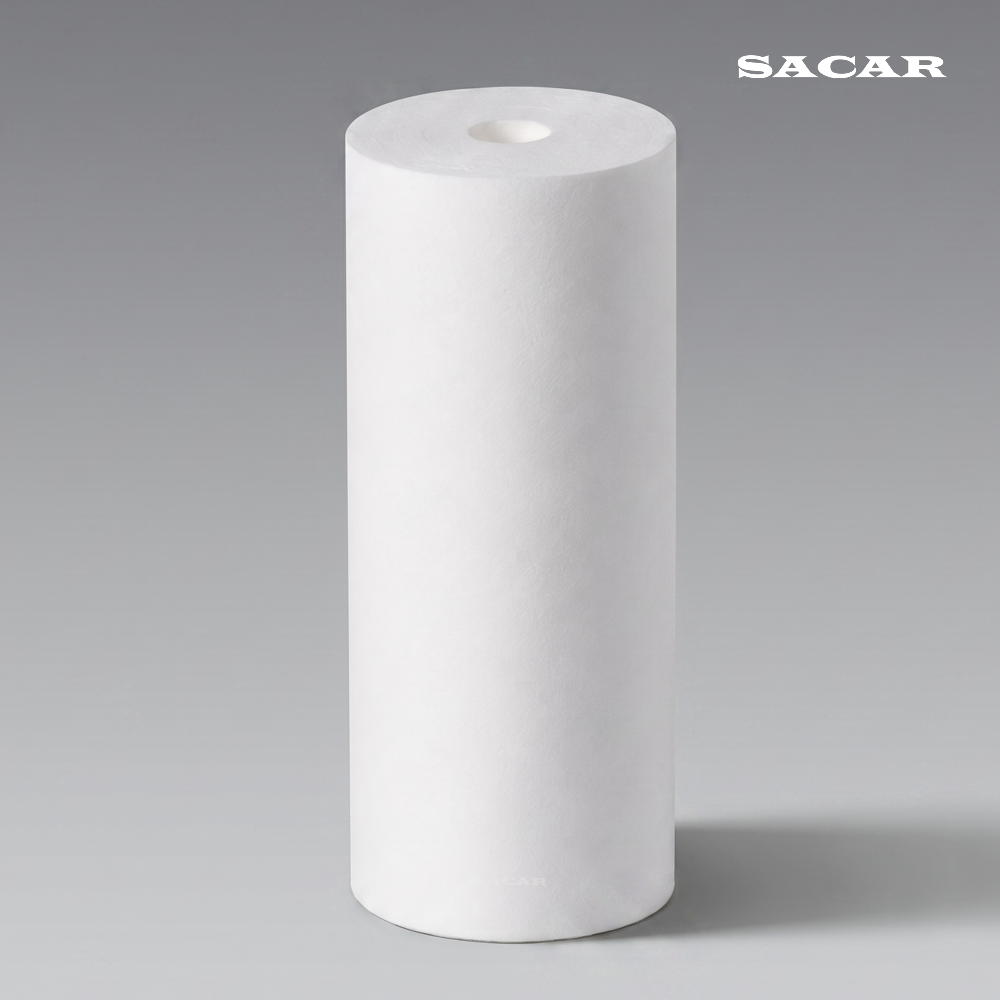

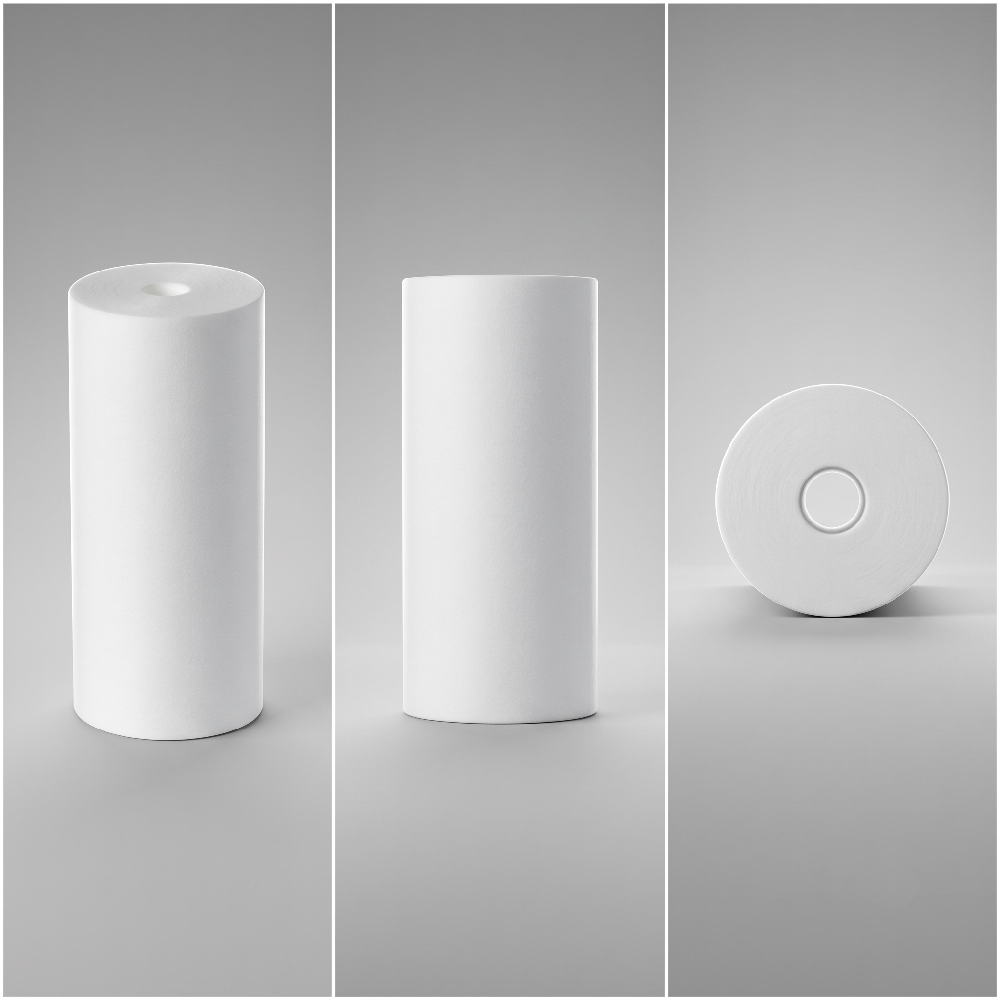

JUMBO PP MELTBLOWN FILTER CARTRIDGES

Jumbo PP Melt Blown Filter Cartirdges, B1SDM Series

[Description]

The Jumbo PP Melt-Blown Filter Cartridge is a large-diameter (110 mm outer diameter compared to standard 62 mm) depth filtration element designed for high-flow rate applications. By offering a significantly larger cross-sectional filtration area and increased dirt-collecting volume, a single Jumbo cartridge replaces multiple standard elements. This dramatically cuts down vessel footprint, cartridge replacement time, and overall maintenance expenditures.

[Features]

•  Expanded 110mm Outer Diameter: Delivers vastly increased surface area and dirt holding volume vs. 62mm filters.

•  High Flow Rate Capability: Accommodates large liquid volumes in a single, compact filter housing.

•  100% Thermal-Fused PP: Additive-free construction eliminates secondary contamination risks.

•  Thick Graded-Density Matrix: Extra thick depth x-layers enhance volumetric contaminant storage capacity.

•  Reduced System Footprint: Replaces multi-cartridge setups, lowering housing costs and changeout labor.

[Specifications]

•  Material: Polypropylene

•  Length: 10, 20 mm

•  Core: Polypropylene

•  Rating: 1 ~ 50 micron

•  ID/OD: Ø 28 / 110 mm

•  Temperature: Max. 80 ℃

•  Differential Pressure: Max. 4.0 kgf/cm²
