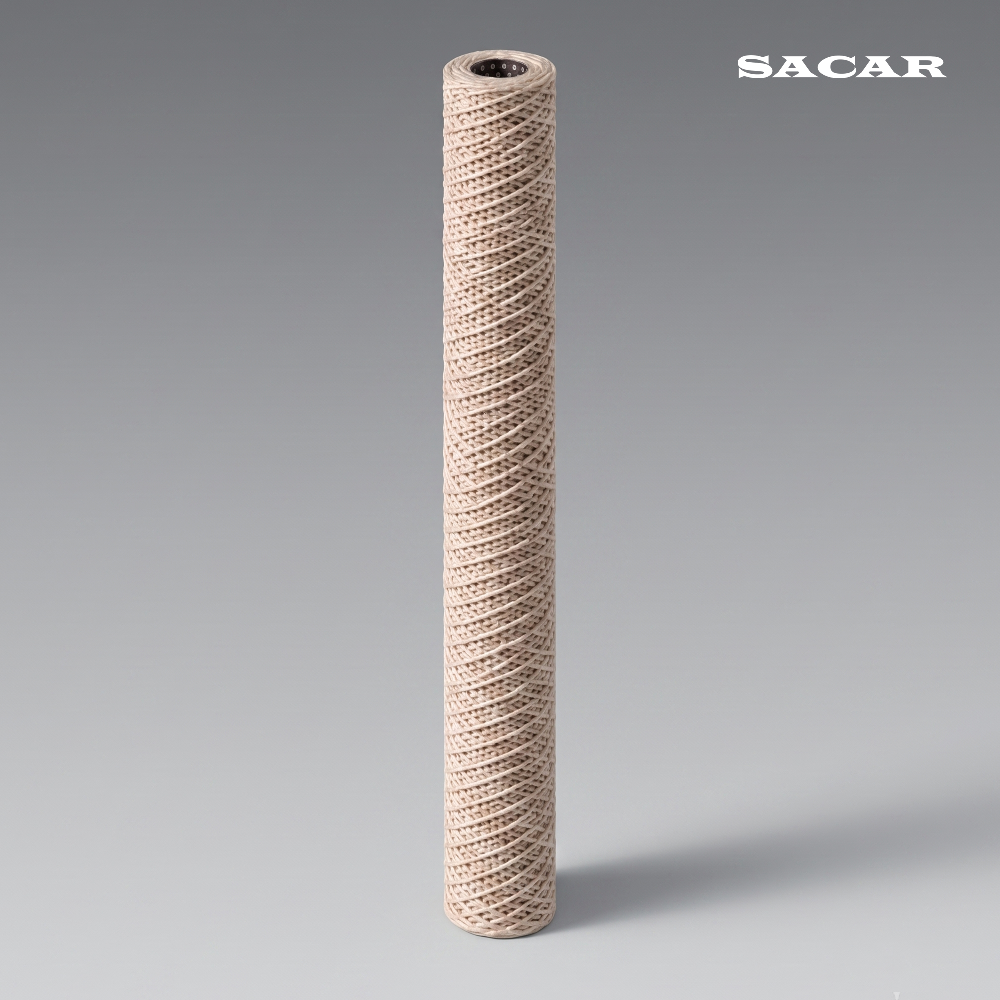

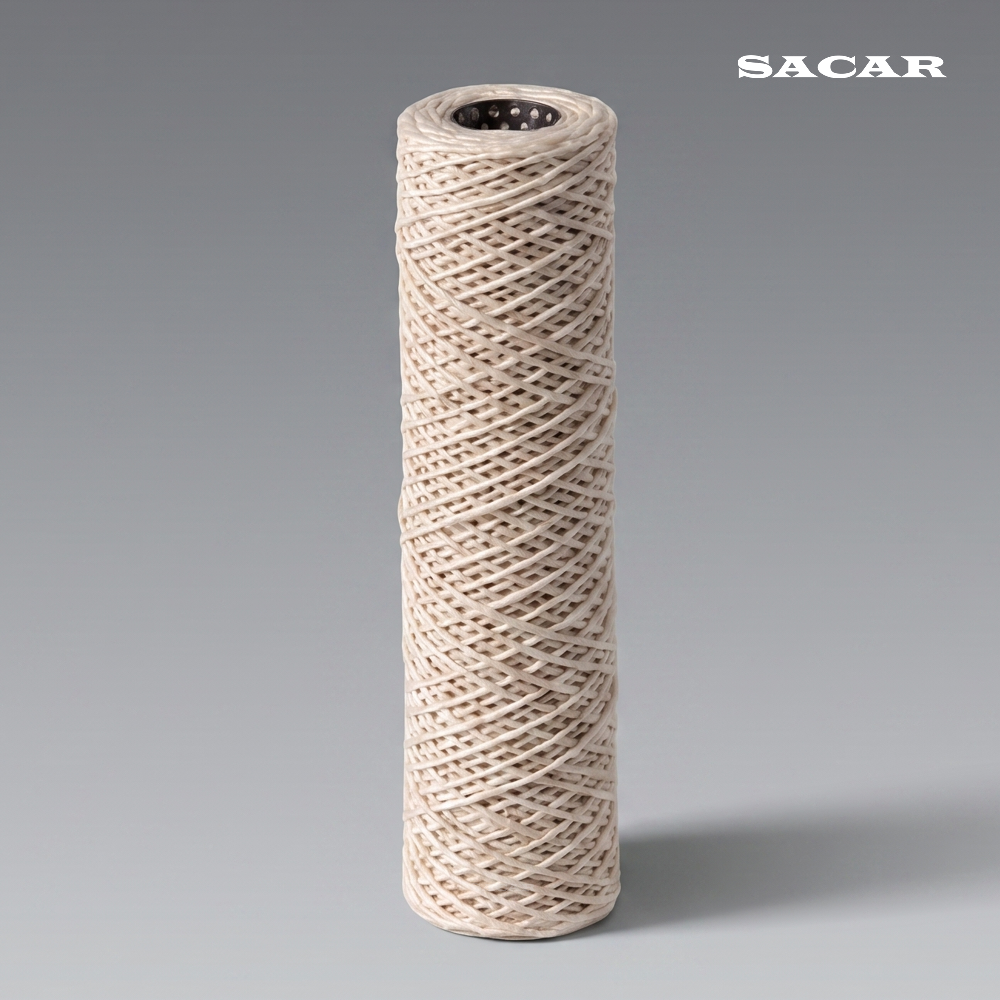

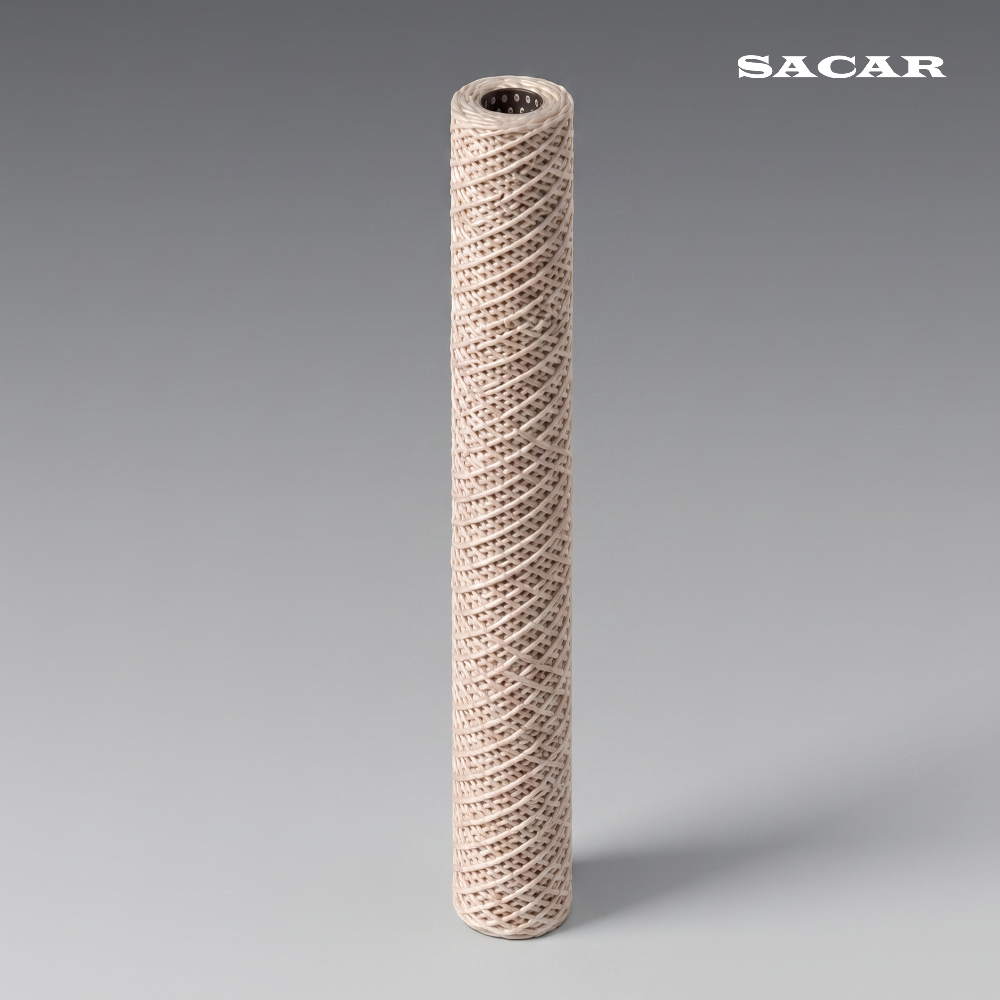

COTTON STRING WOUND FILTER CARTRIDGES

Cotton String Wound Filter Cartirdges, CTSDW Series

[Description]

The Cotton String Wound Filter Cartridge is engineered for high-temperature and solvent applications where standard polypropylene degrades or melts. Wound with natural or bleached cotton yarn around a robust metallic core (Stainless Steel 304/316), it withstands operating temperatures up to 120°C–130°C. It provides exceptional resistance against organic solvents, industrial oils, high-temperature water, and non-polar fluids.

[Features]

•  High Operating Temperature: Functions continuously at temperatures up to 120°C–130°C with an SS core.

•  Natural / Bleached Cotton Yarn: Suitable for neutral liquids, high-temperature boiler feed water, and solvents.

•  Stainless Steel Core Support: Paired with SS304/SS316 core for high pressure and mechanical stability.

•  Solvent & Industrial Oil Resistance: Resists degradation in aliphatic/aromatic hydrocarbons and mineral oils.

•  Overcomes Polypropylene Limits: Provides an ideal alternative where PP suffers swelling or softening.

[Specifications]

•  Material: Cotton

•  Length: 250, 500, 750, 1000 mm

•  Core: SS304

•  Rating: 0.5 ~ 100 micron

•  ID/OD: Ø 30 / 62 mm

•  Temperature: Max. 120 ℃

•  Differential Pressure: Max. 4.0 kgf/cm²
