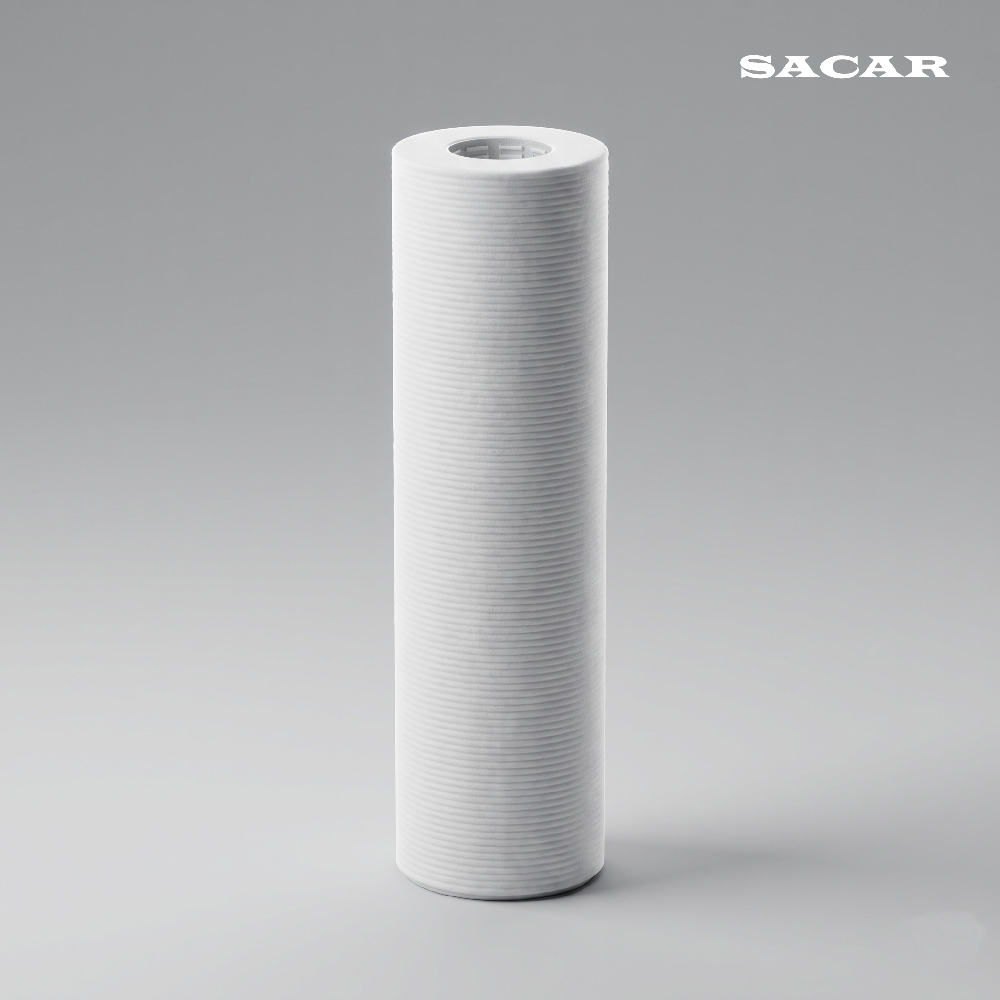

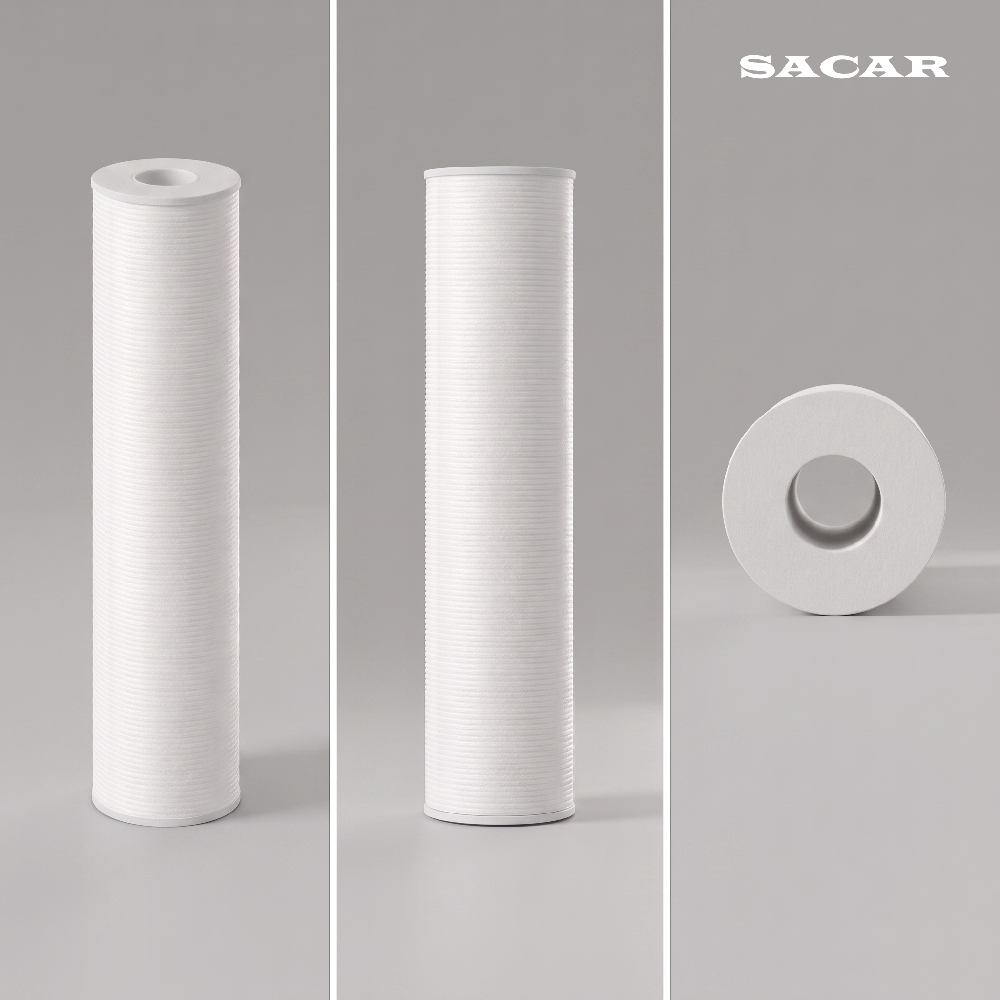

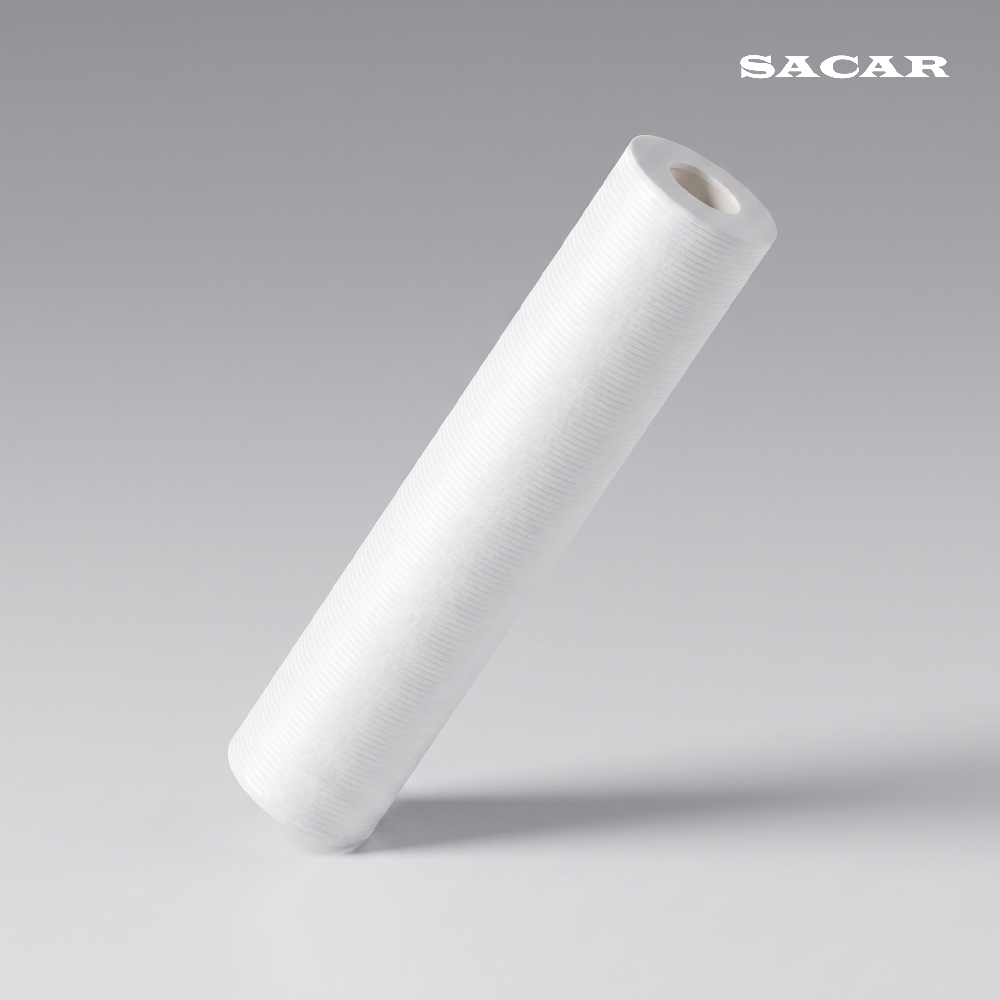

PP NON WOVEN FILTER CARTRIDGES

PP Non-woven Filter Cartirdges, SDN Series

[Description]

The PP Non-Woven Filter Cartridge utilizes multi-x-layered non-woven polypropylene sheets wrapped to deliver consistent, uniform porosity. Combining surface sieving with inner multi-x-layer capturing, it provides higher volumetric flow rates and lower initial differential pressure compared to conventional depth filters. It provides exceptional chemical stability, making it ideal for plating solutions, cooling water, and chemical clarification.

[Features]

•  Multi-Layer Non-Woven Media: Layered structure provides highly stable and predictable filtration efficiency.

•  High Fluid Throughput: Low flow resistance ensures maximum liquid throughput with minimal pressure loss.

•  Pure PP Construction: Chemically inert material prevents media breakdown and secondary chemical elution.

•  Uniform Pore Distribution: Prevents particle bypass even under fluctuating operational pressures.

•  Dual Surface & Depth Capture: Harmonizes surface retention with multi-x-layered internal depth trapping.

[Specifications]

•  Material: Polypropylene

•  Length: 250, 500, 750, 1000 mm

•  Core: Polypropylene

•  Rating: 0.5 ~ 100 micron

•  ID/OD: Ø 30 / 62 mm

•  Temperature: Max. 80 ℃

•  Differential Pressure: Max. 4.0 kgf/cm²
