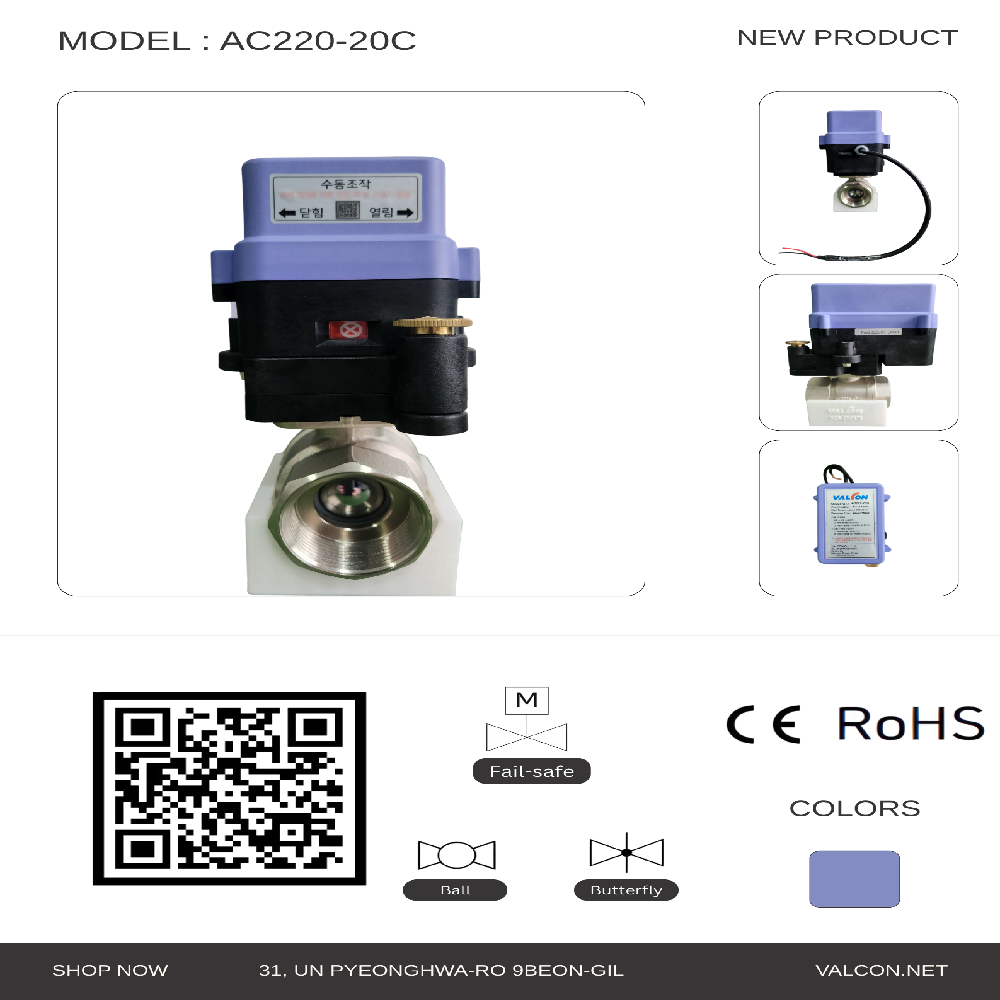

Motorized Actuators AC 220V (Excluding Ball Valve) - AC220-20C (2-wire(Auto Return))

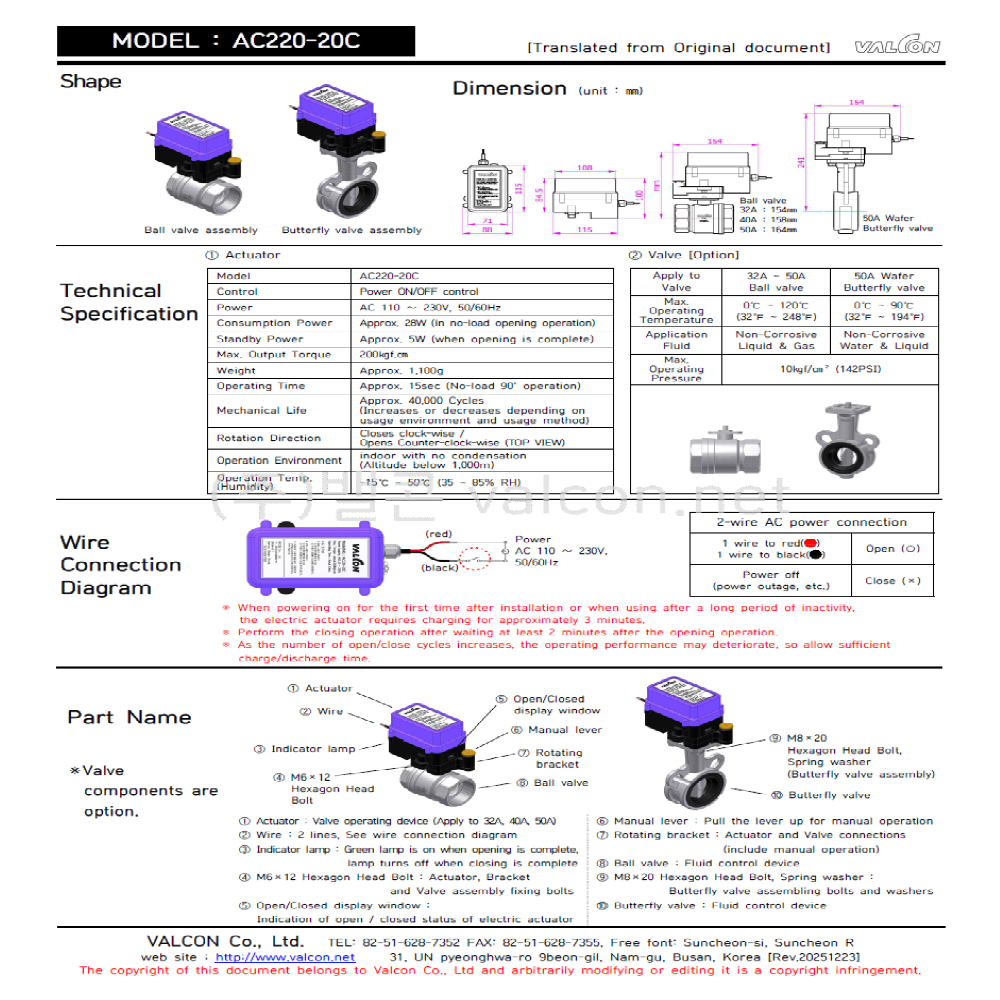

The VALCON AC220-20C is a high-performance electric actuator designed for reliable quarter-turn valve automation in industrial and commercial fluid control systems. Engineered for durability, stable torque output, and user-friendly operation, this model is suitable for integration with 32A to 50A ball valves and butterfly valves, providing precise ON/OFF control for various liquid and gas applications.

With a power consumption of approximately 28W during operation and only 5W in standby mode, the AC220-20C is energy-efficient while maintaining operational readiness.

Its mechanical life expectancy reaches approximately 40,000 cycles, depending on usage environment and operating conditions, ensuring long-term reliability in automation systems.

The actuator is designed for indoor environments without condensation, operating within a temperature range of -15°C to 50°C (35–85% RH).The valve operating temperature range varies depending on valve type, supporting up to 120°C for ball valves and 90°C for butterfly valves, with a maximum operating pressure of 10 kgf/cm² (142 PSI).

For enhanced usability, the AC220-20C features:

• 2-wire AC power connection system

• Clockwise closing / counterclockwise opening rotation (top view)

• Green LED indicator lamp that illuminates when fully open

• Open/Close display window for visual status confirmation

• Manual override lever for emergency or maintenance operation

In case of power interruption, the actuator automatically returns to the closed position, enhancing operational safety in system shutdown scenarios

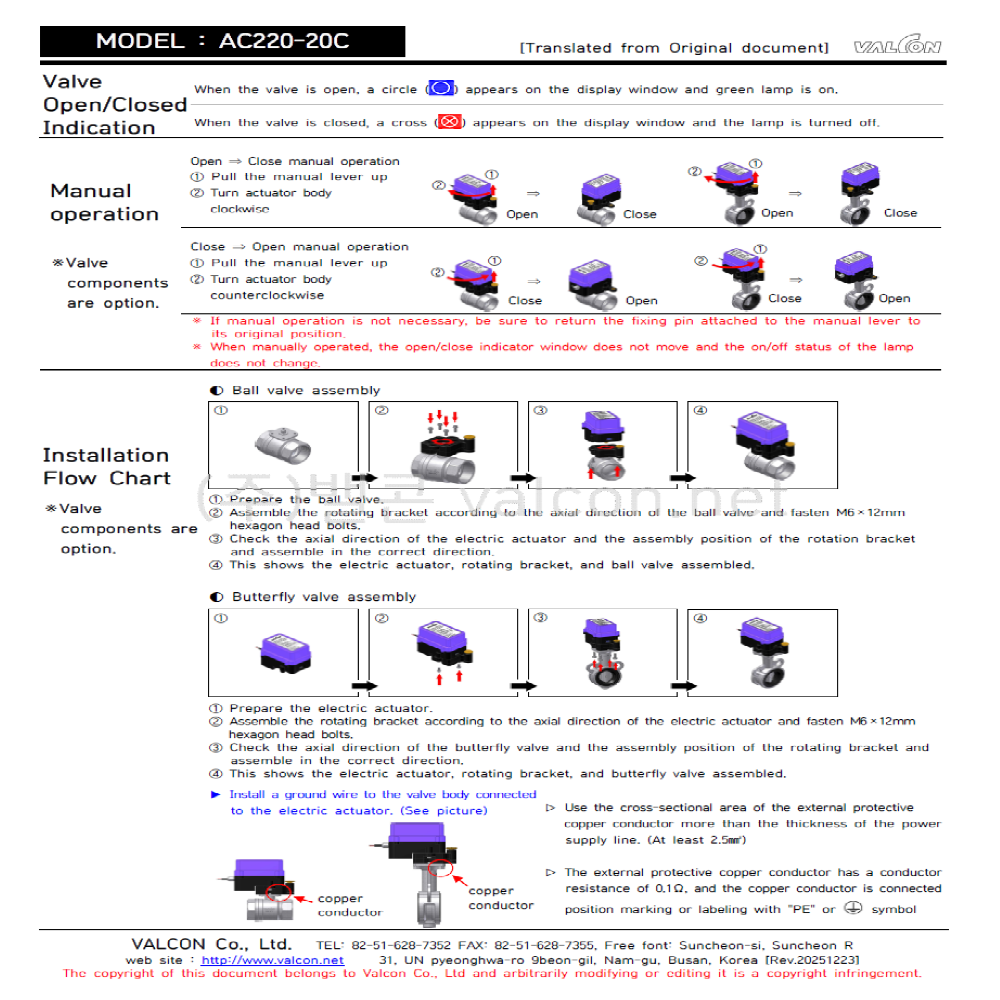

Installation is straightforward with a rotating bracket assembly system and hexagon head bolt fixation, allowing stable mounting to compatible valves. Proper grounding is required, and a minimum 2.5 mm² protective conductor is recommended for safety compliance

The AC220-20C is suitable for applications such as:

• Water treatment systems

• HVAC piping systems

• Industrial fluid control lines

• Agricultural irrigation systems

• Process automation systems

Compact in size (approx. 1,100g weight) yet powerful in performance, the VALCON AC220-20C provides a dependable solution for automated valve control where safety, stability, and operational efficiency are essential.
