Introduction

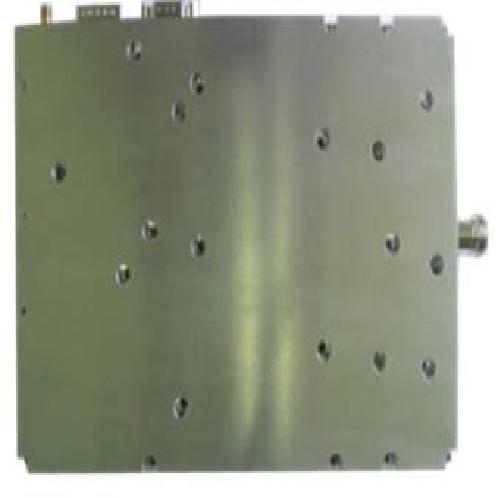

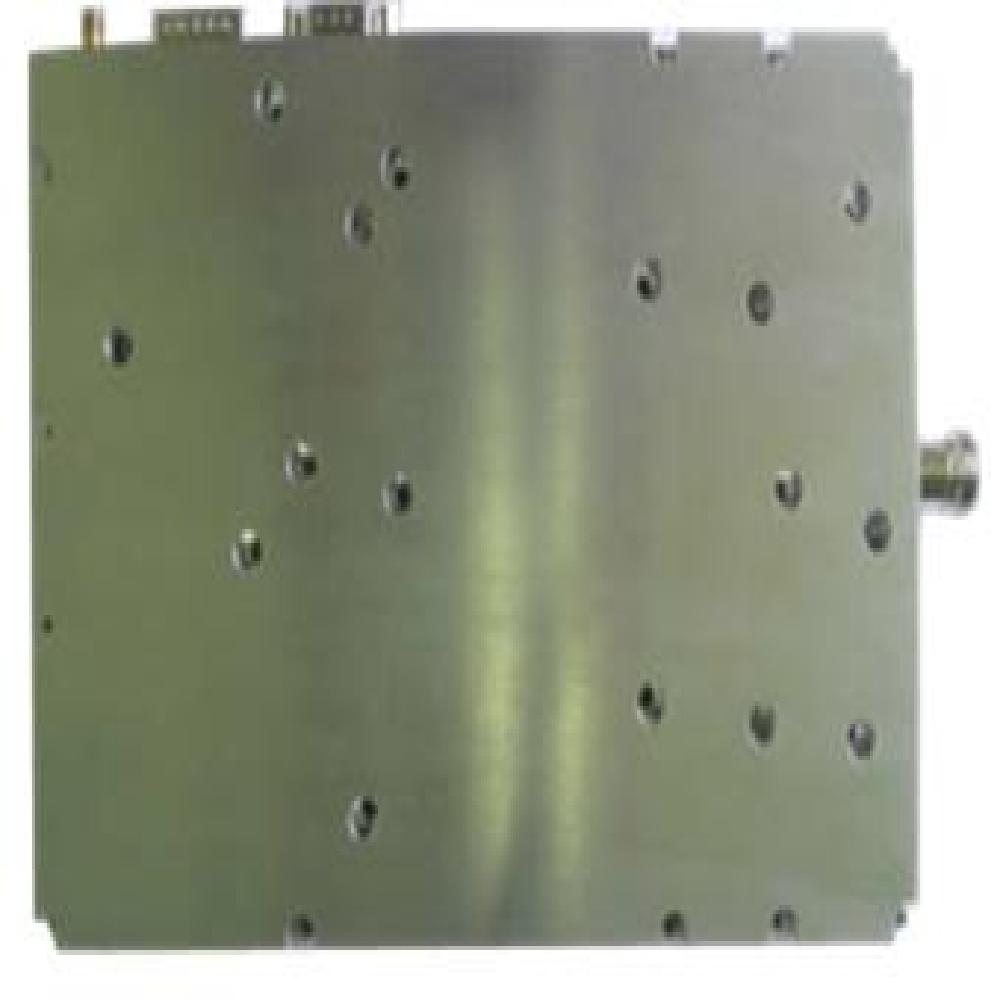

SSEC's solid state power amplifiers are primarily designed to amplify the signals of ultrafast photo-detectors which are being applied for air-force indication system, aircraft approach warning system., as well as High-Speed Electrical Measurements, Laser Research, High-Speed Optical Measurements, Photonics Research and Laser Diode Driver
|
Technical Specification |
SM5002 |
SM5003 |
|
Frequency |
9.3~9.5GHz |
3.0~3.3GHz |
|
Pout |
170W |
170W |
|
Gain |
53dB |
53dB |
|
Harmonics |
-40dBm |
-40dBm |
|
Voltage |
28V |
28V |
|
Current Consumption |
TBD |
TBD |
|
Dimension(mm) |
300x300x40 |
200x300x40 |
|
Weight |
TBD |
TBD |
